简易频闪控制器
WLPR2-SB-15W-E01G-24-2 |
WLPR2-SB-30W-E01G-24-2 |
WLPR2-SB-60W-E01G-24-2 |
WLPR2-SB-15W-E01G-24-2
参 数 表
Model | WLPR2-SB-15W-E01G-24-2 |
Input voltage | AC100~240V,50/60Hz |
Control method | PWM/100KHz |
Channels | 2 channels |
Rated capacity | 15W max. for 2 channals total |
Rated output voltage | DC24V |
Ext. input signal(or Trigger signal) | DC10~30V |
Strobe timer | 0.1~100% Adj. |
Intensity Adj | 0~100% |
Operating temperature and humidity | 0 to 40℃,35 to 85%/RH(no condensation) |
Storage temperature and humidity | ()-20 to 70℃,35 to 85%/RH(no condensation) |
Vibration re resistance | 10~55Hz/amplitude 1.5mm,2 hours(each x,y,z) |
Weight | 450g max |

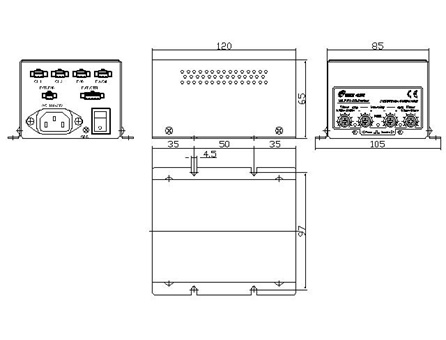

Dimension | W105×H65×D120(mm) |
Case material | SPCC and SECC |
Light cable length | 5m max |
Mounting method | Normal |
