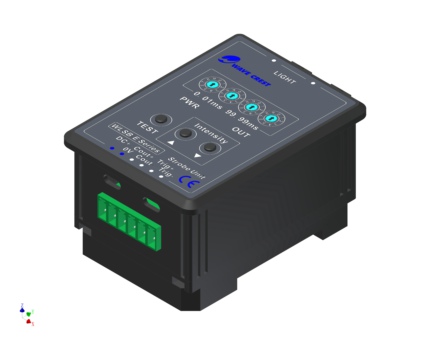

小型高精度频闪控制器
WLSB-100W-E01G-24-1-EH |
WLSB-30W-E01G-24-1-EH |
WLSB-50W-E01G-24-1-EH |
WLSB-50W-E01G-24-1-EH
参 数 表
Model | WLSB-50W-E01G-24-1-EH |
Input voltage | DC24V±10% |
Control method | PWM/100KHz/255 steps or Strobe |
Channels | 1 channels |
Rated capacity | 50W max. for 1 channals total |
Rated output voltage | 24VDC |
Ext. input signal(or Trigger signal) | DC10~30V |
Strobe timer | 0.01~99.99ms adj. |
Operating temperature and humidity | 0 to 40℃,35 to 85%/RH(no condensation) |
Storage temperature and humidity | ()-20 to 70℃,35 to 85%/RH(no condensation) |
Vibration re resistance | 10~55Hz/amplitude 1.5mm,2 hours(each x,y,z) |
Weight | 150g max |

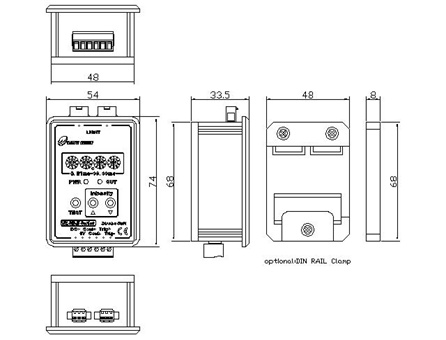

Dimension | W54×H86×D41.5(mm) |
Case material | Aluminum and resin, Black alumite |
Light cable length | 5m max |
Mounting method | On DIN rails, on bottom surface or an stand |
Accessories | Terminal unit |
