智能相机专用光源控制器
WLEU-15W-E01G-24-1 |
WLEU-30W-E01G-24-1 |
WLEU-50W-E01G-24-1 |

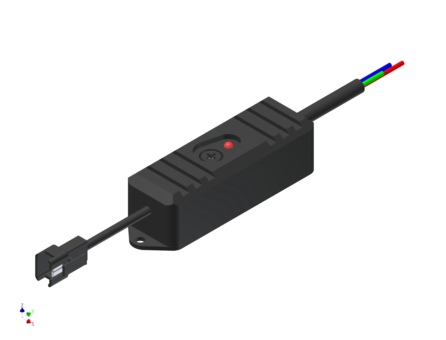

WLEU-15W-E01G-24-1
参 数 表
Model | WLEU-15W-E01G-24-1 |
Input voltage | DC24V±10% |
Control method | PWM/100KHz |
Channels | 1 channels |
Rated capacity | Max.15W |
Rated output voltage | DC24V |
On/Off signal | DC10~30V |
Input connector | M12(4pins,male) |
Intensity Adj | 0~100%(100KHz/PWM method) |
Operating temperature and humidity | 0 to 40℃,35 to 85%/RH(no condensation) |
Storage temperature and humidity | ()-20 to 70℃,35 to 85%/RH(no condensation) |
Vibration re resistance | 10~55Hz/amplitude 1.5mm,2 hours(each x,y,z) |
Weight | 150g |

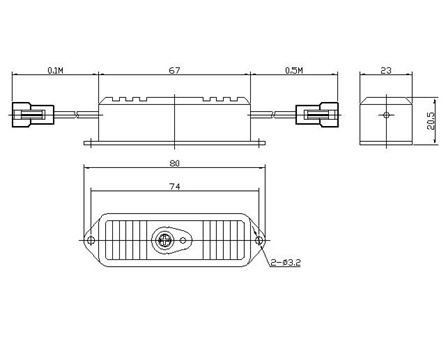

Dimension | W80×H20×D23(mm) |
Case material | AL |
Cable length | 680mm(including the intensity control unit) |
Mounting method | Normal |
Accessories | Terminal unit |
