Input voltage

DC24V±10%

Control method

Strobe(with 10ms constant timer)

Channels

1 channels

Rated capacity

Max.15W

Rated output voltage

DC24V

On/Off signal

DC10～30V

Input connector

M12(4pins，male)

Intensity Adj

0～100%(100KHz/PWM method)

Operating temperature and humidity

0 to 40℃，35 to 85%/RH（no condensation）

Storage temperature and humidity

（）-20 to 70℃，35 to 85%/RH（no condensation）

Vibration re resistance

10～55Hz/amplitude 1.5mm，2 hours（each x，y，z）

Weight

150g

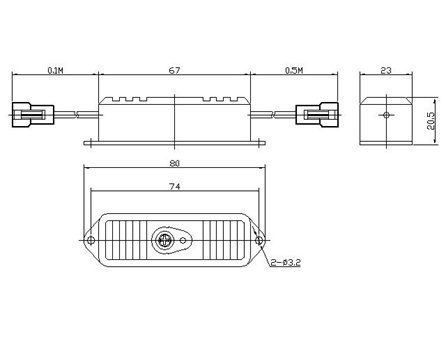

Dimension

W80×H20×D23（mm)

Case material

AL

 Cable length

680mm(including the intensity control unit)

Mounting method

Normal

 Accessories

Terminal unit
